WP 26-12 (12V 26Ah)

Description

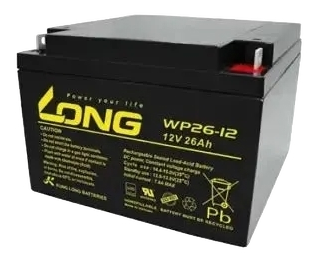

The LONG WP26-12 battery is a high-performance sealed AGM VRLA battery with
26Ah capacity at C20, tailored for enhanced durability in compact applications. It employs
proprietary grid alloys for reduced gassing and extended life, with AGM technology ensuring
spill-proof, vibration-resistant operation and 99% gas recombination. Low self-discharge
(<3%/month at 25°C) and 3-5 year design life at 25°C make it suitable for monitoring
equipment, emergency lighting, power tools, consumer electronics, and marine uses. Features
reinforced ABS casing, nut & bolt terminals, and compliance with UL, CE, and VdS. Temperature
range: -15°C to 50°C. Dimensions: 165mm (L) x 176mm (W) x 127mm (H); Weight: approx.
7.9kg; Terminal: F3 (Nut & Bolt). Backed by quality standards

Additional Information

LP SERIES — GENERAL PURPOSE

Replace this line with your product model info (e.g., 12V 26Ah, AGM VRLA). Add a short sentence like “Designed for backup & general applications”.

View Datasheet (PDF) Download PDF

YOUR BRAND

Model: WP 26-12 (12V 26Ah)

Applications

Uninterruptible Power Supply (UPS)
Emergency power supply
Telecom backup power
Alarm and security system
Consumer power supply
Auto control system

General Features

5 years design life (25°C)
Low self-discharge
Sealed maintenance-free
High reliability & safety
ABS casing, spill-proof
Suitable for standby applications

Standards

Complies with IEC / CE standards
UL Recognized components
Manufactured under ISO system
RoHS compliant

Discharge CharacteristicsClick to open

Charging CharacteristicsClick to open

Effects of Temperature on CapacityClick to open

Self Discharge CharacteristicsClick to open

Dimensions / DiagramClick to open

Note: Replace the bullet points + headings with exact values from your model datasheet. If you want, you can also embed the full PDF below by using an iframe (if your plugin allows).

dimension

Specifications

12V AGM VRLA battery
Spill-proof durable ABS casing
Design life: 3–5 years

graph

table

– PERFORMANCE DATA

Discharge Rates in Watts to Various End Voltages at 25℃(77℉)

Time	End Voltage	1.85V	1.80V	1.75V	1.70V	1.67V	1.65V	1.60V
2	min	—	—	—	—	—	—	—
4	min	—	—	—	—	—	—	—

Discharge Rates in Amperes to Various End Voltages at 25℃(77℉)

Time	End Voltage	1.85V	1.80V	1.75V	1.70V	1.67V	1.65V	1.60V
2	min	—	—	—	—	—	—	—
4	min	—	—	—	—	—	—	—

All data on the spec sheet is an average value.

Tolerance range: <6min(±15%~±18%), 6min ≤ X < 10min(+12%~−12%), 10min ≤ X < 60min(+8%~−8%), X ≥ 60min(+6%~−6%)
